Straight Grab Rail

Specifications

Material	#304 Stainless Steel – 32mmØ
Finish	Satin Stainless Steel
Mounting	Concealed Fix – 78mmØ Mount

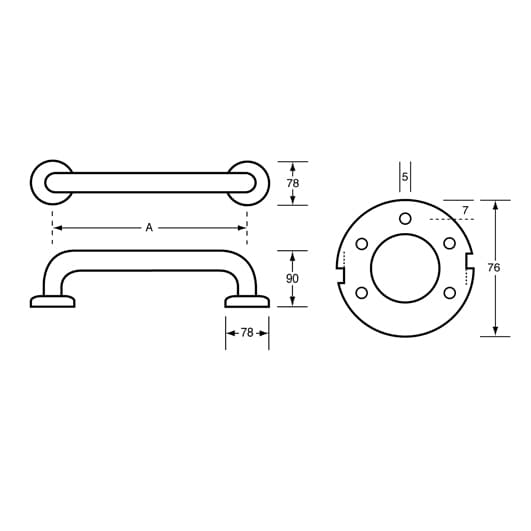

	Please Note: A Indicated On The Line Drawing Refers To The Length, Please See Below And Specify Accordingly
Sizes C to C	300mm, 350mm, 400mm, 450mm, 600mm, 750mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm
Notes	* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines. * It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. * Compliant with the Force Requirements within AS1428.1: 2021, Section 14.
